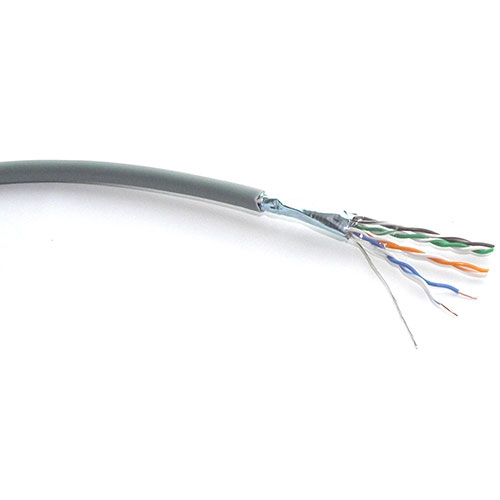

Gigabase® 350 CAT5e F/UTP Bulk Cable LSZH

Our Low Smoke Zero Halogen cable is ideal for public areas, transport systems, factories, and any other areas
where the protection of people and equipment from toxic and corrosive gases is essential. The zero halogen jacket
has excellent fire and safety characteristics, giving off less smoke and emitting very low gases. This high quality
solid core bulk cable is ideal for Ethernet, Fast Ethernet, Gigabit Ethernet, Power over Ethernet (PoE). CATx and other
demanding structured cabling applications.

This cable is 3rd party tested and complies with a wide range of electrical and safety standards including
ISO/IEC11801, CENELEC EN50173-1:2011, and ANSI/TIA-568-C2 making it appropriate for almost every indoor
application.

This 350 mHz bulk cable comfortably exceeds the Cat5e requirements for insertion loss, crosstalk, and return loss.

The cable is tested as a full channel solution and is especially compatible with the range of shielded Gigabase jacks,
Patch cables, and patch panels.

Environmental — RoHS / RoHS2 Compliant
CE — LVD (2006/95/EC), RoHS2(2011/65/EC)
Construction — 24 AWG Solid Bare Copper Twisted-Pair Conductors, Polyethylene Insulation, F/UTP Overall Foil Screen with Drain Wire, LSZH Jacket
 
Applicable Standards
Electrical —
2.2 edition ISO/IEC 11801, Cat.5;
CENELEC EN 50173-1:2011, Cat.5;
ANSI/TIA-568-C.2, Cat.5e;
2nd edition IEC61156-5, Cat.5e-Level 2, Type 2, Grade 2;
2nd CENELEC EN 50288-2-1
Safety —
CENELEC EN 60332-1-2 / IEC 60332-1-2;
CENELEC EN 50268-1 / IEC 61034-1;
CENELEC EN 50268-2 / IEC 61034-2, inc1. Amendment 1;
CENELEC EN 50267-2-3 / IEC 60754-2
Materials/Construction —
CENELEC EN 60811-1-1, clause 9.2 / IEC 60811-1-1, clause 9.2.7;
CENELEC EN 60811-1-3, clause 10 / IEC 60811-1-3, clause 10;
CENELEC EN 60811-3-1, clause 9.2 / IEC 60811-3-1, clause 9.2;
CENELEC EN 60811-1-2, clause 8.1 / IEC 60811-1-2, clause 8.1;
CENELEC EN 50290-2-27, CENELEC EN 50290-2-23

Physical
Conductors —
Material 24AWG Solid Bare Copper;
Diameter 0.540 ± 0.02 mm
Insulation —
Material HDPE;
Diameter 1.06 ± 0.02mm
Shielding —
Mylar Tape PET (20 x 0.025mm);
Drain Wire Stranded Tinned Copper (1/0.48mm);
Al-Mylar Tape Laminated Aluminium-Polyester (20 x 0.063mm)
Jacket —
Material: LSZH;
Diameter: 6.1 ± 0.2mm;
Colour: Blue, Green, Red, Yellow, Purple

Packaging — Wooden Spool

Temperature —
Installation -20°C up to +60°C;
Operation 0°C up to +60°C
Min Bend Radius —
Installation 6 x overall diameter;
Operation 4 x overall diameter
Max Pulling Tension — 90 N
Flame Retardance — IEC 60332-1-2

Electrical Characteristics at 20°C

Characteristic Impedance at 100 MHz — 100 ± 15 Ohm
Maximum Conductor DC Resistance — 93.8 Ohm/km
Mutual Capacitance — 56 nF/km
Maximum Capacitance — 330pF/100m (Unbalanced Pair to Ground)
Maximum Propagation Delay — 536 ns/100m
Maximum Delay Skew — 45 nS/100m
Max. Operating Voltage — 300 V rms
