Store home > Cables > Wallplates & Jacks > CAT5e > CAT5e Shielded Jack with Universal Wiring
CAT5e Shielded Jack with Universal Wiring

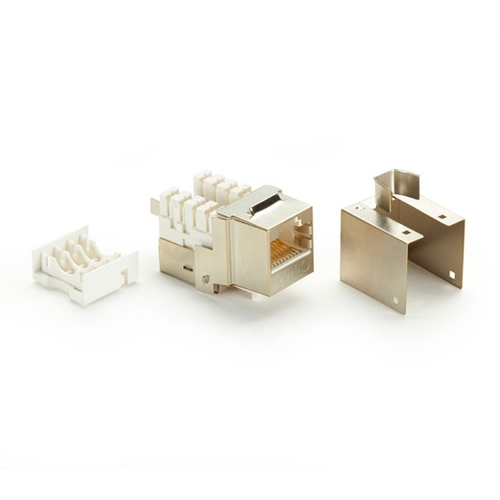

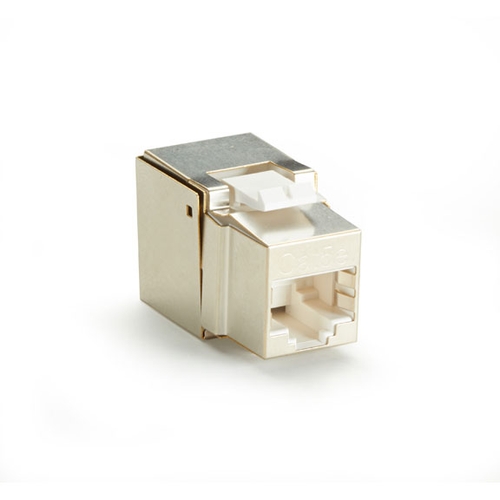

Photo may vary from actual product
FMS210: CAT5e


CAT5e Shielded Jack with Universal Wiring


Eliminate crosstalk and interference in CAT5e runs.


  • Fully-shielded housing for better EMI protection.
  • CAT5e channel compliant.
  • Unique wire management stuffer cap separates pairs, prevents crossed pairs, and reduces crosstalk.
  • Features inversely oriented, right-angled IDC contacts to prevent NEXT.
  • Has a quick grounding mechanism.
  • Use with a 110-punchdown termination tool (FT025A).
  • Warranty: Lifetime Double Diamond™ Warranty

  Product       Code   Unit price   Quantity


CAT5e
  CAT5e Shielded Jack with Universal Wiring
CAT5e Shielded Jack with Universal Wiring
  FMS210
On request

Add to quotation basket

Material —
Overall Housing: Copper C2680 (0.25-mm thick) plated with 0.76-micron Nickel;
Housing: High-impact Acrylonitrile Styrene (ABS Resin) UL 94 V-O rated;
Jack Contacts: C5210R-H Phospher Bronze flat wire, plated with 50-um Gold over 70-um Nickel;
IDC Contacts: Phosper bronze plated with Tin and Nickel underplating;
IDC Block: High-impact polcarbonate (PC Resin) UL 94 V-O rated
Conductor Diameters —
Solid: 22 AWG to 26 AWG;
Stranded: 24 AWG
Insulation Diameters —0.8-mm to 1.0-mm
Cable Diameters —5-mm (0.197") to 9-mm (0.354")
Connector—RJ-45 female
Port —Keystone
Rear Contacts — IDC 110
Wiring —Universal (T568A and T568B)
