These DIN Rail Repeaters with Opto-Isolation protect equipment from ground loops and spikes while optically isolating it from the rest of a network and expanding a system beyond node or distance limits.
Two repeaters are available: RS-422/RS-485 (ICD102A) and RS-232 (ICD103A). You can use them together with the RS232/422/485-converter (ICD100) to link your industrial devices together and/or add distance between the devices. They provide superior performance in an industrial environment, such as a manufacturing plant.

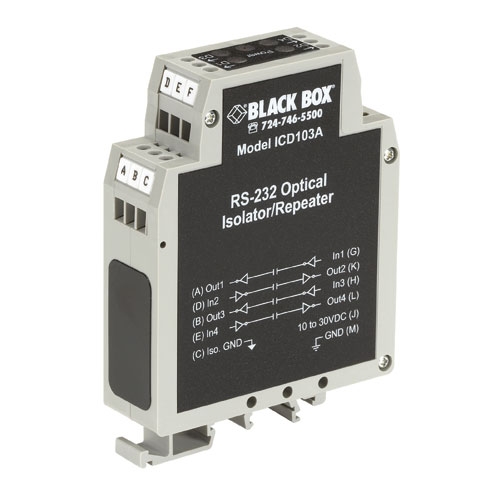

ICD103 isolates the TD, RD, RTS, and CTS channels, supports 115.2-kbps speeds on all four channels, and extends the RS-232 signal beyond 15.2 m.
Protect equipment from ground loops and spikes while optically isolating it from the rest of a network and expanding a system beyond node or distance limits.

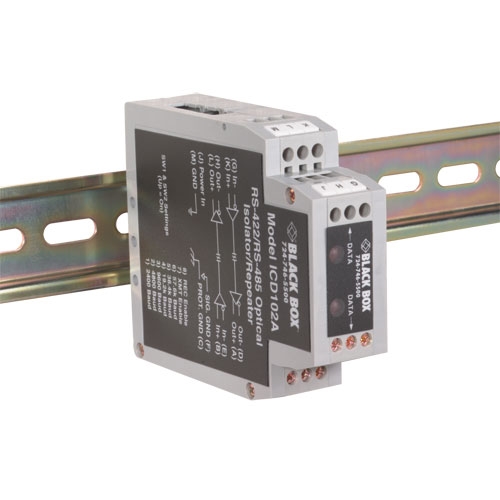

The RS-422/RS-485 model ICD102A isolates RS-422/485 equipment. It features selectable rates between 2400 bps and 115.2 kbps, and enables a system to exceed 32-node limitations.
Isolation —
ICD102A: 2000 VRMS for 1 minute of optical isolation of data lines;
ICD103A: 2000 VDC for 1 minute
Distance —
ICD102A: 1200m
ICD103A: 15m
Operating Environment —
Temperature: -40 to +176° F (-40 to +80° C);
Humidity: Up to 95% noncondensing
Operation —
ICD102A: RS-485: 2-wire half-duplex or 4-wire full-duplex; RS-422: Full-duplex;
ICD103A: RS-232: Half- or full-duplex
Speed —
ICD102A: 2400 bps to 115.2 kbps, switch-selectable; other rates available up to 460.8 kbps;
ICD103A: Up to 115.2 kbps
Surge Suppression —
ICD102A: Bidirectional overvoltage suppressor: 6.5 V; Peak power dissipation: 600 W; Capacitance (maximum): 3000 pF
Connectors — (2) 6-position terminal blocks
Indicators —
ICD102A: (2) LEDs: Data flow direction;
ICD103A: (5) LEDs: (4) data flow direction, (1) power
Power — 10-30 VDC, 100 mA
Size —
ICD102A: 0.9©H x 2.9©W x 3.9©D (2.3 x 7.4 x 9.9 cm);
ICD103A: 1©H x 2.9©W x 3.9©D (2.5 x 7.4 x 9.9 cm)
